Heavy-duty 1-Ton aluminium tie rod Barnes 4WD Lift 0-6"

• Tie rod material: solid 7075 aluminium
• Tie rod outer diameter: 1.5"
• Type: heavy-duty 1-Ton tie rod
• GM 1-Ton-standard tie rod ends
• Lighter and more flexible construction than a steel tie rod
• Installation without drilling or reaming the steering knuckle holes
• Designed for off-road driving and modified steering systems

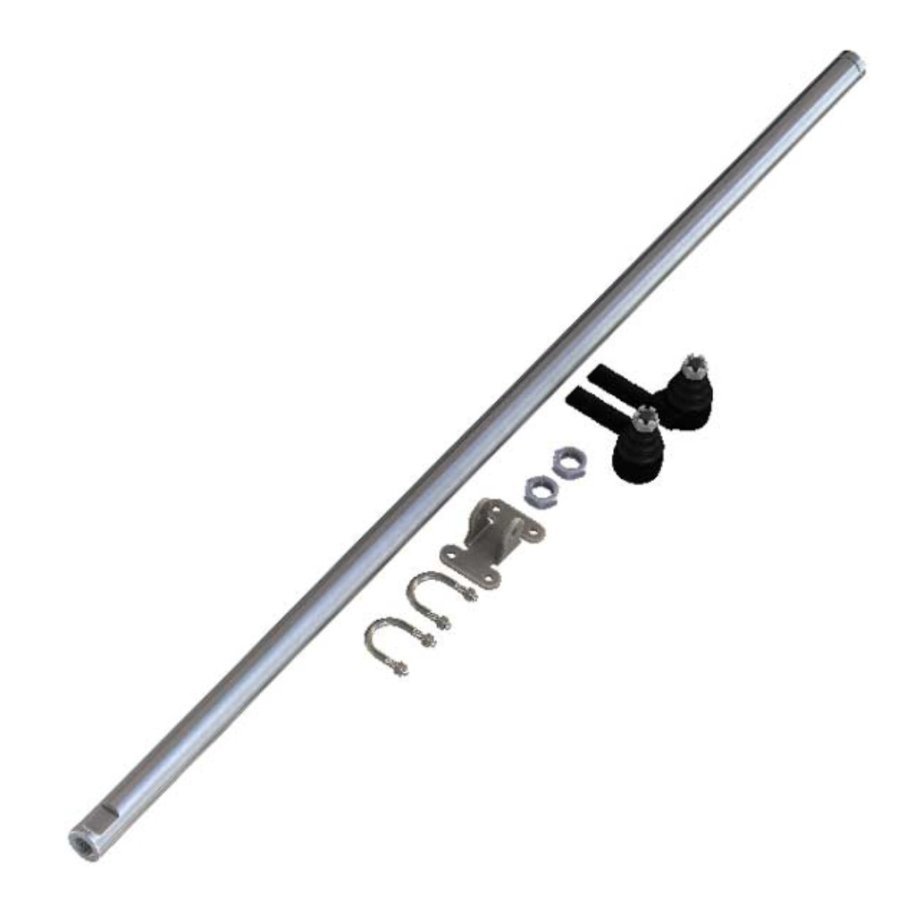

In the box:

• Barnes 4WD 1-Ton aluminium tie rod
• Steering stabilizer mount
• GM 1-Ton offset tie rod end with left-hand thread
• GM 1-Ton offset tie rod end with right-hand thread

Notes:

• Factory wheels require 1.5" wheel spacers
• Fits aftermarket wheels with 4.5" backspacing or less
• Depending on the wheel design, additional spacers or steering stop adjustment may be required
• Steering stabilizer mounts positioned outside the factory location may come into contact with the tie rod
• Before driving, check the full steering range and make sure the tie rod does not interfere with the wheels or other components
• The kit does not include the upper drag link
