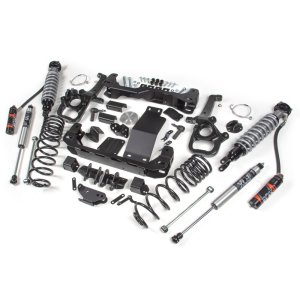

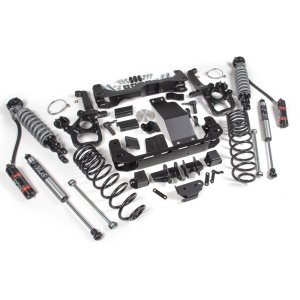

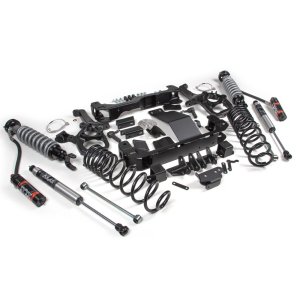

Suspension kit BDS with FOX 2.5 Performance Elite + 2.0 Performance Shocks Lift 4" 4WD Standard Bore

• FOX 2.5 Performance Elite DSC Coilovers with remote reservoirs for front lift
  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2,5" impact extruded aluminum body
  • Massive 7/8" hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Designed specifically for increased travel and the abilty to soak up the roughest terrain
  • DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs
• FOX 2.0 Performance IFP rear shocks
  • 2" impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8" hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Long-lasting clear anodized finish
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles

In the box:

• (2) Front FOX 2.5 Performance Elite Coilover
• (2) Rear FOX 2.0 Performance Shock
• Rear box kit:
  • (2) Bump extension
  • UCA Relocation bracket
  • Track bar bracket
  • Brake adapters
  • (2) Rear Pro-Ride coil spring
  • (2) Rear sway bar link
• Front box kit:

  • Drive shaft spacer
  • Rear crossmember
  • Skid plate
  • (2) Front brake line
• Knuckle box kit
• Mounting hardware

Notes:

• Requires cutting
• Fits 4WD models ONLY
• Fits models with 3.0L Hurricane I6 engines and models with 3.6L V6 engines
• Fits vehicles equipped with Standard Bore hubs ONLY
• If your vehicle has a large hub bore, use the lift kit with standard BDS2116F or BDS2116FPE control arms (sold separately)
• Not compatible with diesel models
• Not compatible with models with air ride
• Standard 18" wheels cannot be refitted due to interference with the steering system
• Standard 20" and 22" wheels can be refitted with factory tyre size
• Recommended tyre and wheel size (may require trimming)
  • 35 x 12.5 with 20 x 9 and 5 inches backspacing
  • 35 x 12.5 with 18 x 9 and 4.5 inches backspacing
• Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance (sold separately)
• Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines mounted as circled in image below
