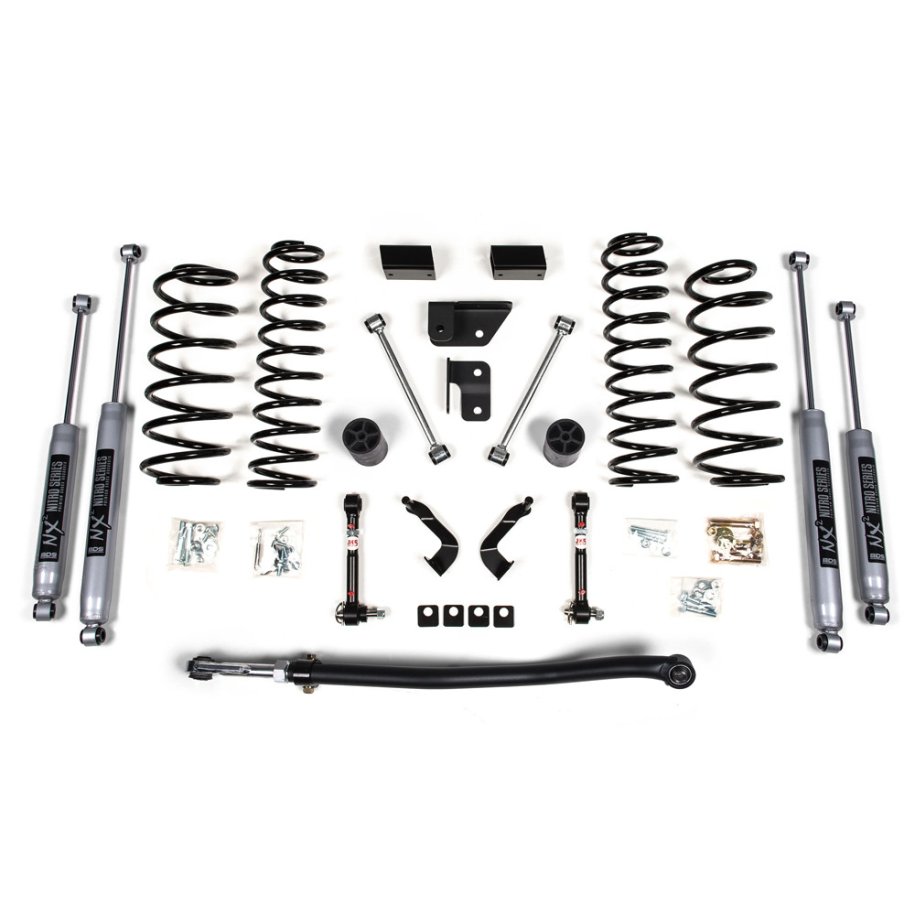

Suspension kit BDS Lift 3"

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• BDS NX2 gas shocks for improved damping
• Allows clearance for 37" tyres

Front shock dimensions:

• Extended: 26.20"
• Compressed: 15.67"
• Travel: 10.53"

Rear shock dimensions:

• Extended: 29.78"
• Compressed: 17.59"
• Travel: 12.19"

Front shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

Rear shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

In the box:

• Front track bar
• (2) Front coil spring
• (2) Front shock NX2 Nitro series
• (2) Front bump stop spacer
• (2) Front sway bar link disconnect
• (2) Rear coil spring
• Rear track bar bracket
• (2) Rear bump stop spacer
• (2) Rear sway bar link
• (2) Rear shock NX2 Nitro series
• Track bar bracket support

Notes:

• Rubbing can occur under full articulation
• Non-Rubicon comes from the factory at a lower ride height, which will net slightly more lift final stance the same for all models
• Stock wheels cannot be reinstalled without spacers due to rear sway bar interference
• Will not fit 4xe models
• Will not fit Rubicon 392 models
• Does not fit Diesel models
• Recommended tyres & wheels
• 35 x 12.5 with 17 x 9 and 4,5" Backspace (Trimming may be required)
• 37 x 12.5 with 17 x 9 and 4,5" Backspace (Trimming may be required)
