Suspension kit TeraFlex Lift 3,5"

• Increases ground clearance
• Allows the installation of larger tyres
• Gives aggressive look

Max tyre diameter:

• Sport/Overland: 35”
• Rubicon: 37”

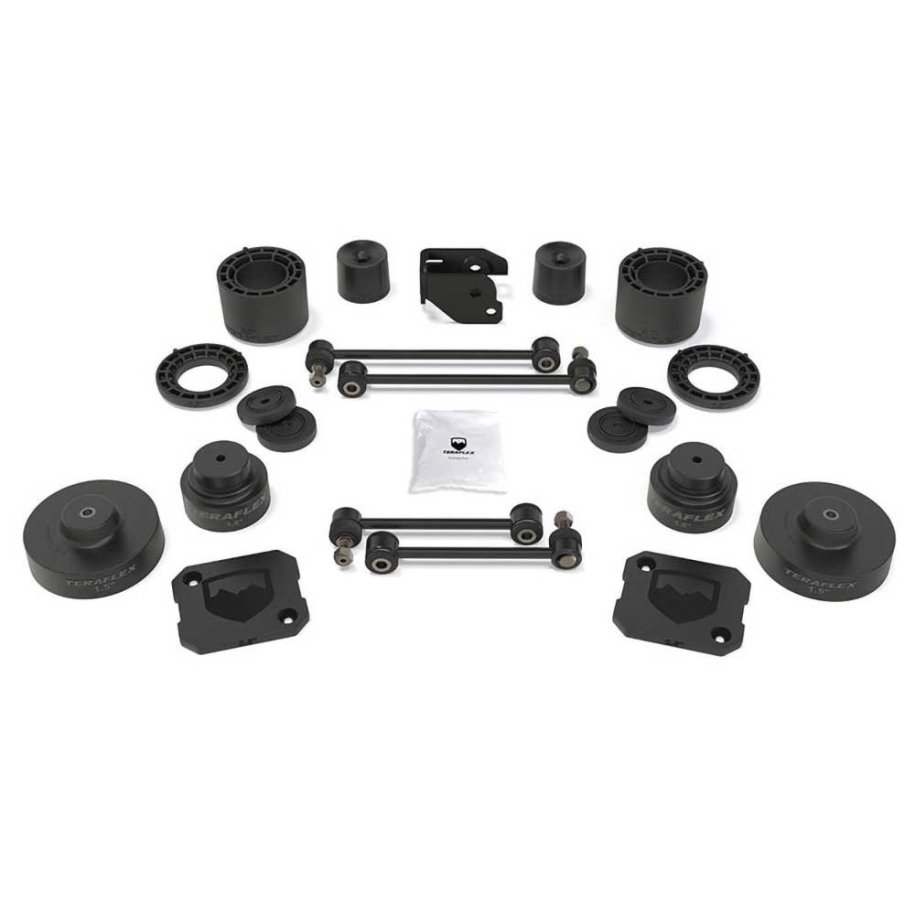

In the box:

• (2) Front coil spring spacer 0,5" lift
• (2) Front coil spring spacer 3" lift
• (2) Rear coil spring spacer 1,5" lift
• (2) Front bumpstop bottom spacer 2" lift
• (2) Rear bumpstop top spacer 0,5"
• (2) Rear bumpstop top spacer 1,5" lift
• (4) Front bumpstop spacer 0,5" lift
• (4) Rear bumpstop bottom spacer 0,5" lift
• (2) Front sway bar link
• (2) Rear sway bar link
• (2) Spacer 1"
• All necessary hardware

Notes:

• Caster correction required: Front Lower Sport Control Arm Kit (TX1253000), or Front Control Arm Sport Frame Bracket Kit (TX1938125), or adjustable 8-Arm Short Control Arm Kit (Alpine: TX1417550 or Alpine IR: TX1417500), and/or HD Forged Adjustable Front Track Bar(s) (TX1753420)
• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (TX1057000) for stock wheels (sold separately)
• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35” or larger tyres
• Requires 2” front upper, 1.5” rear upper, and 0.5” rear lower bump stop strike pad extensions to fit 35-37” tires
• All OEM fenders require 2” Front and 2” Rear Bump Stop Extensions (INCLUDED) to fit 35” tires
• Requires longer shocks. We recommend Falcon Performance Shocks (sold separately)
• Requires alignment
