Suspension kit BDS Lift 2"

• Increases ground clearance
• Allows larger tyres to be fitted
• Gives aggressive character

Coil spring specs:

• Heavy duty
• Shot peened for increased tensile strength
• Hydraulic pre-set for reduce fatigue
• Polyester based powder coating
• Sold in pairs

Shock specs:

• Pressurized nitrogen charged twin-tube design
• Fluon banded piston 1-3/8"
• 14mm hardened chrome shaft
• 2" bodied shock
• Vehicle specific valving for better control
• Durable metallic silver finish
• High-end performance at an affordable price
• Lightening fast dampening adaptive to terrain
• Large fluon banded piston with self lubricating seals

Shock dimensions:

• Extended: 23.12"
• Compressed: 14.24"
• Travel: 8.88"

Shock mounts:

• Top mount: eyelet
• Bottom mount: eyelet

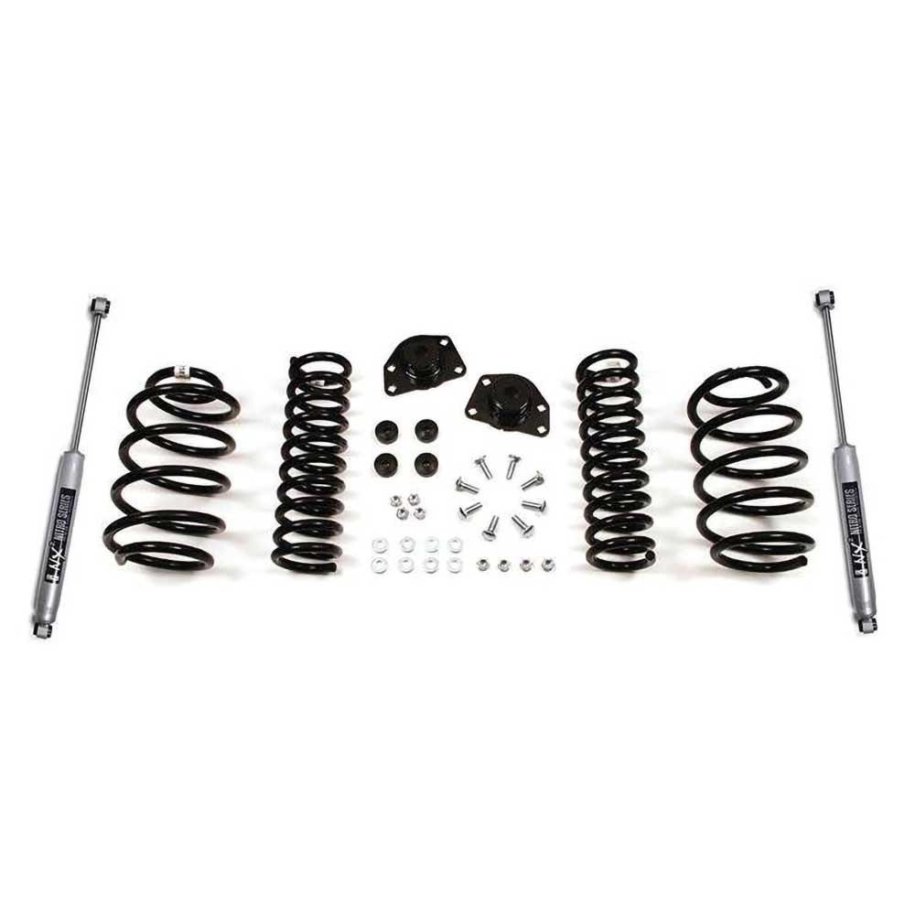

In the box:

• (2) Front coil spring
• Front strut spacers
• (2) Rear coil spring
• (2) Rear shock NX2 Nitro series
• Mounting kit

Notes:

• Lift Kit dedicated to gasoline engine ONLY
