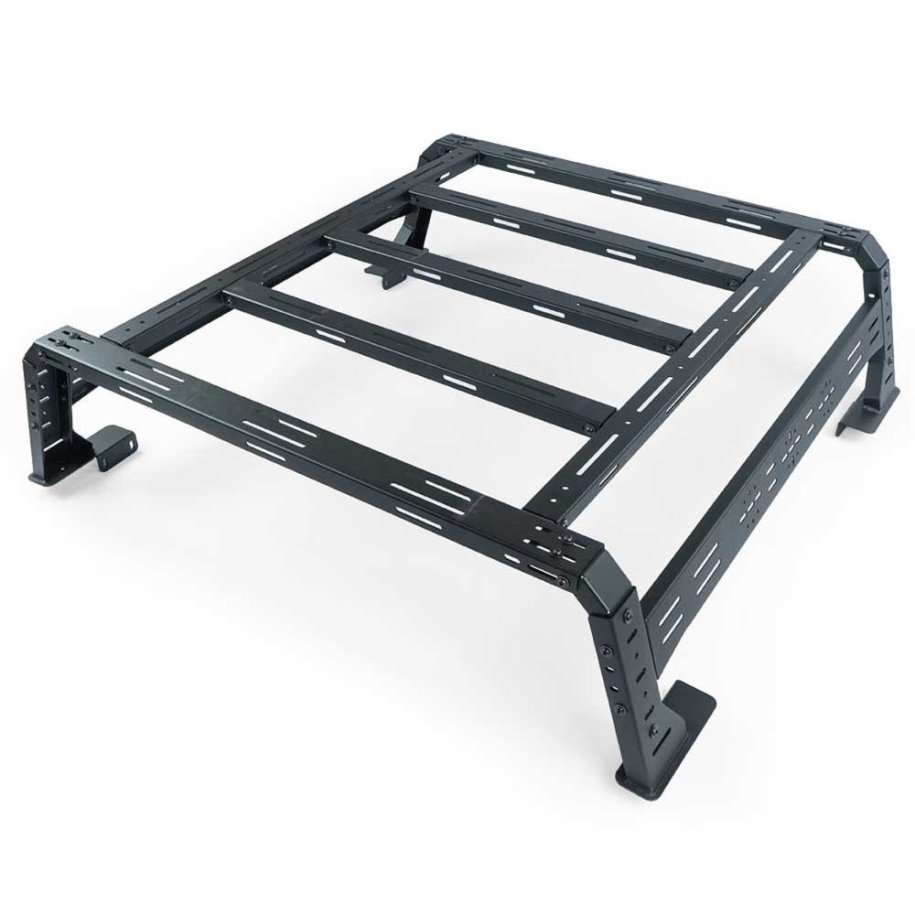

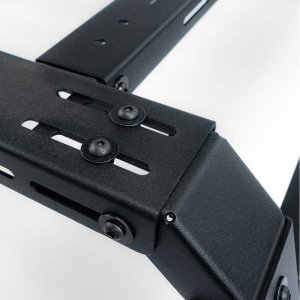

Bed rack OFD

• Provides almost unlimited mounting options for accessories
• Powder coated black
• Modern design
• Multifunctional structure
• Simple installation, some drilling required
• If the OFD R2 retractable bed cover (OF03425102) is already installed, no drilling is required for installation
• Contact points with the bed are secured with protective stick-on foam
• Black-oxide screws
• Durable steel construction

Dimensions:

• Width of main carrier crossbars: 128 cm
• Width of central crossbars: 110 cm
• Length: 154 cm
• Height from base 37-52 cm (depending on adjustment)

Load capacity:

• Static: 300 kg
• Dynamic: 150 kg

In the box:

• (2) Main crossbar
• (3) Centre crossbar
• (2) Side crossbar
• (4) Mount to bed
• (4) Mount to OFD R2 retractable bed cover (OF03425102)
• Mounting kit

Notes:

• It is possible to mount the bed rack at a height of as low as 31 cm from the base, but the side columns will protrude above the plane of the rack
• Does not fit models equipped with RAM BOX
