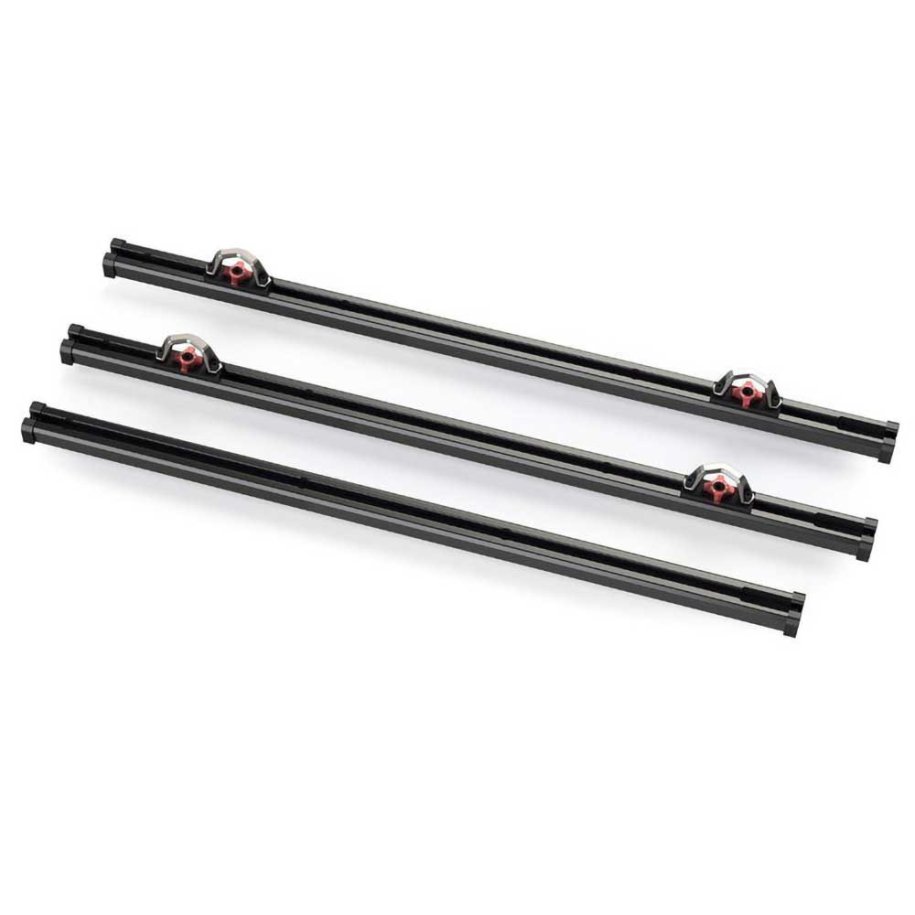

Cargo bed rail system TeraFlex Uinta

• High resistance to damage
• Black finish
• Increases the loading area

Uinta cargo bed rails specs:

• Each Unita Cargo Bed Rail has a load rating of 225 kg
• Constructed from 6063-T5 extruded aluminum
• Features an attractive and durable textured black powder coat finish for corrosion resistance
• Textured finish provides more grip to keep Tie-Down Anchors in place
• End Caps constructed from UV resistant and flexible injection molded high-density polyurethane (HDPE) plastic
• All hardware features black automotive grade coatings
• No drilling or tapping required

Uinta cargo tie-down anchors specs:

• Single tie-down anchor load capacity up to 112 kg
• Constructed from forged 304 stainless-steel that have been passivated to further improve rust prevention
• Black anodized extruded 6061-T6 aluminum main body w/ red anodized aluminum knob
• Adjustable knob to secure heavy loads
• Knob features a pressed-in threaded steel stud w/ 8mm Allen head bolt that allows adjustment via an Allen wrench or socket
• The Anchor is secured to the main body via 6mm Allen head bolts that can be used to secure optional accessories
• A snap ring behind the T-nut on the stud prevents accidental disassembly of the unit so the nut doesn't fall into the bed rail
• All hardware features black automotive grade coatings
• All metal construction is more robust than plastic Mopar Tie-Down Loops
• Compatible w/ OEM bed side rails

In the box:

• (1) Front Uinta Cargo Bed Rail
• (2) Uinta cargo bed rail (left and right)
• (6) Uinta cargo bed rail end cap
• (4) Uinta cargo tie-down anchor kit
• All necessary hardware

Notes:

• Each Uinta Cargo Bed Rail and Tie-Down Anchor has a load rating of 500 pounds. Do NOT exceed a 250-pound load per Tie-Down Anchor when using two Anchors on one Rail.
• OEM tie-down Loops are not compatible w/ the TeraFlex JT: Unita Cargo bed rail system
