Base Rack jumta bagāžnieka elektroinstalācijas izvades komplekts ar vadiem ARB 1780400

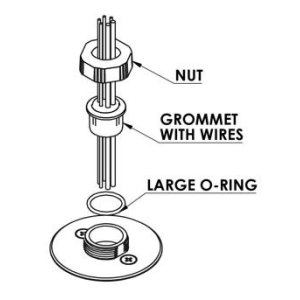

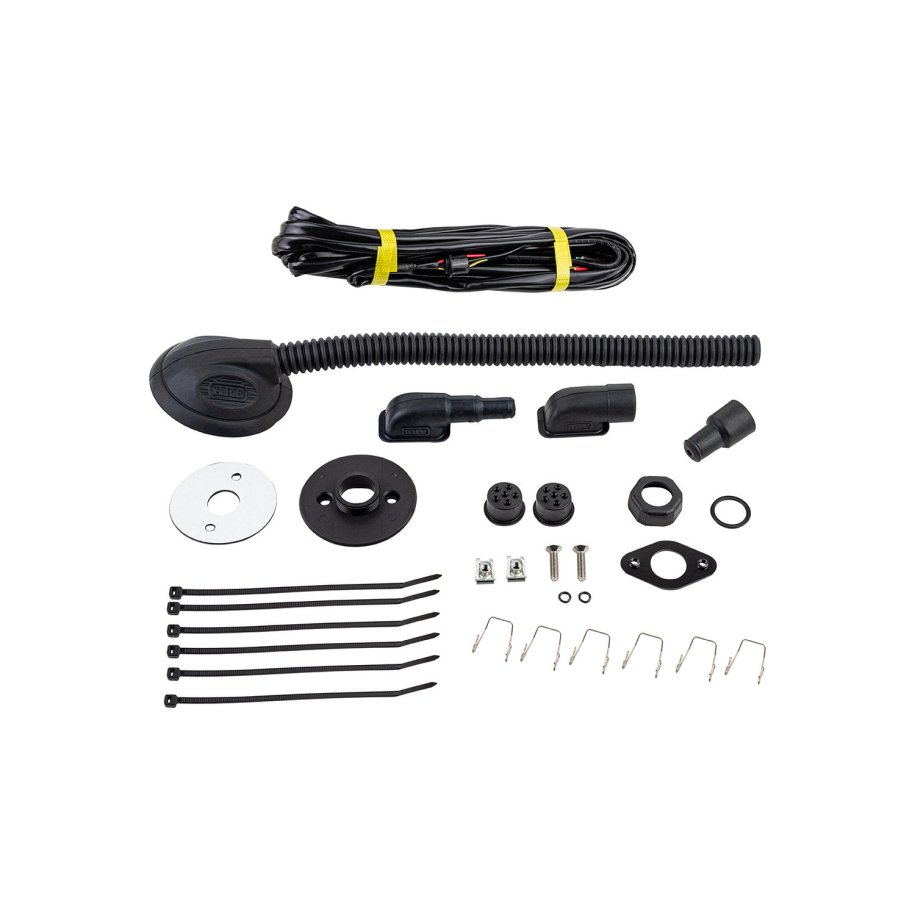

BASE Rack WiringTraditionally wiring for accessories fitted to roof racks has involved wiring going up windscreens, up out of B pillar door gaps and the like. As part of the ARB BASE Rack development ARB's engineers have developed a wiring solution to neatly get wiring from inside the vehicle through the vehicle or canopy roof.Two wiring kits have been developed. One kit is pre-wired with 6 wires (3 circuits) preinstalled to ensure sealed wiring. (1780400) The second kit has provision for 6 wires allowing differing wiring depending on customer requirements. (1780410)Key criteria during development included:Sealed wiring solution for passing wires through a vehicle roofSeamless integration with ARB BASE RackExit grommets to fit standard 10mm (3/8ÔÇ?) and 13mm (1/2ÔÇ?) OD conduit sizesHigh quality automotive wire to JASO standards (PN 1780400 only)Free from liquid adhesivesDisconnection kit to reseal roof exit points when rack is removed (PN 1780620)Fitting of the wiring kits requires 2 x 7mm (0.28ÔÇ?) and 1 x 25mm (1.0ÔÇ?) holes to be drilled in the vehicle or canopy roof. The 25mm hole is suitable for Deutsch DT-02 connectors to pass through. Mount location for popular vehicles has been developed allowing for side curtain airbags and other obstructions where necessary.The 1780400 kit includes:Rubber outer boot with 300mm sheathRoof grommet with bonded wires. 4.0m is provided for outside the vehicle roof and 2.5m provided for within the vehicleRed and Red/Back 2.0mm-¦ (25A)Green and Green/Black 0.5mm-¦ (11A)Yellow and Yellow/Black 0.5mm-¦ (11A)BASE Rack entry grommetBASE Rack exit grommetDirect exit grommetFastenersCable ties and edge clips
