Suitable for larger 4wd such as Toyota Landcruisers, Nissan Patrols and Dodge Rams.

Product Specification

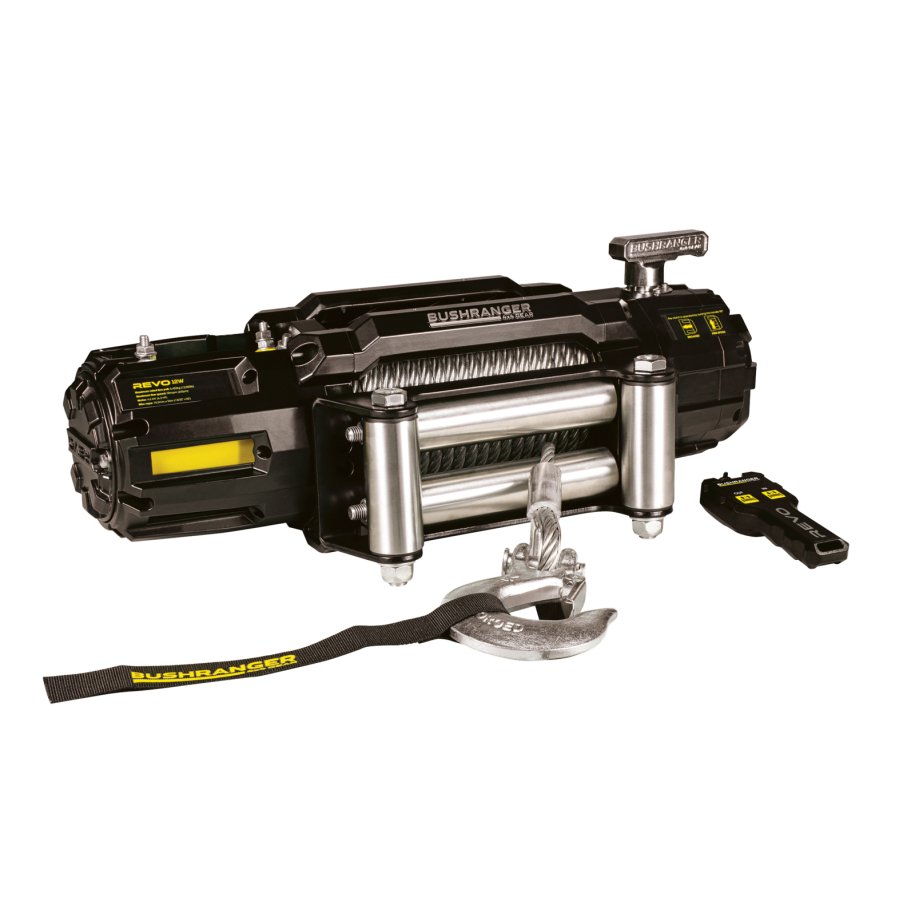

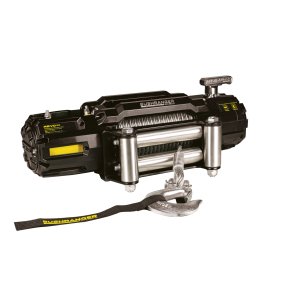

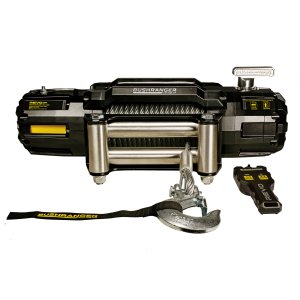

 Bushranger REVO is packed with many features including: high quality construction, low current draw, 4 stage oversized gearing with fast line speeds and an advanced proportional friction braking system that will reliably hold 100% of the rated load with no slippage. The zero drag braking system allows for      fast no load line speeds, making unspooling the rope a breeze. No more pulling against the friction of traditional winch braking systems, just use the power of the winch to do the unspooling for you with no concern of brake drag causing unnecessary wear and heat build-up. At 16m/min, the rope is unwound in no time, letting you get on with the recovery of your vehicle. A fully sealed motor and gearbox (IP67 rated) gives maximum protection from water, dust and debris, meaning the winch is ready for anything you can throw at it.

The versatile design of the Bushranger REVO maximizes the ease of installation with 22.5 degree increments (resulting in 16 Gearbox clocking positions) and a multi-mount Control Box. Supplied with a strong roller fairlead setup incorporating durable stainless steel rollers, and a wired hand controller.

The Bushranger REVO has a limited lifetime mechanical warranty, and 7 year electrical warranty.

Product Specifications:

• Premium Motor design | Series wound, 12V, 6.2HP motor made with high grade materials resulting in low current draw and longer life at extreme load.
• Clock-able motor housing | 4 position motor clocking for versatility during fitting
• Multi-mount control box | for easier installation
• No-lift clutch | easy to use spring loaded cam style clutch mechanism
• Tough Design | strong and lightweight aluminum alloy housings with durable black powder coat finish
• Zero brake drag | Zero drag braking system allows for the winch to be powered out under no load without heat build-up, making unspooling a breeze.
• 4 stage oversized gearbox | designed for maximum strength and durability. Extra wide gears improve load distribution resulting in less wear and increased long term reliability. Externally adjustable, 16 position gearbox clocking for ease of fitment and use.
