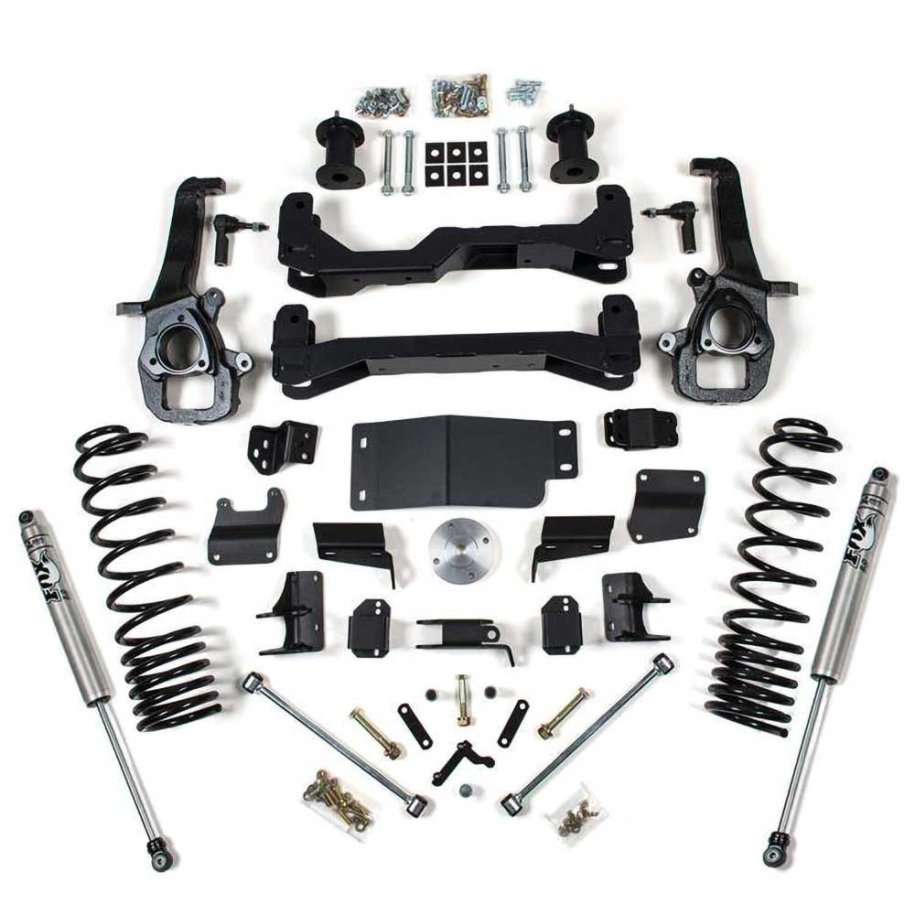

Suspension kit with FOX Performance 2.0 IFP shocks BDS Lift 4" Standard Bore

• Increased ground clearance
• Levels the front with the rear of the vehicle
• Gives an aggresive look

Lift consists of:

• Front Crossmember
• Front Brake Line
• Front Brake Line Brackes
• Front Steering Knuckles
• Tie Rod End w/Nut
• Skid Plate
• Differential drop brackets
• Sway bar drop brackets
• Drive Shaft Spacer
• Rear Crossmember
• Bump stop extension
• Relocation brackets
• Strut spacer box kit
• (2) Rear shocks Fox Performance 2.0 IFP

Notes:

• Cutting required
• Fits ONLY vehicles with STANDARD hub bore
• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ
• Will NOT fit adjustable "air ride" suspension equipped models
• Will NOT fit 2019 RAM 1500 Classic models, Refer to the 2018 kit listings
• Stock 17" wheels cannot be reinstalled to to steering interference. Stock 20s can be reinstalled with factory tire size
• This kit will NOT work on Diesel models.
• For models with large bore You must to buy lift kit BDS1664FS (with Fox shocks) or lift kit BDS1664H (with NX2 shocks), sold separately
