Suspension kit Superior Engineering Lift 1,5"

• Professional lift kit, designed to fit your car
• Front additional load up to 30kg
• Rear additional load up to 60kg
• Adjusted to both on-road and off-road environments
• Improves the handling and driving experience of lifted car
• Castor correction bushes return the castor angle of the front wheels to factory specification
• Crossmember drop kit eliminates driveshaft rubbing on the crossmember
• Extended brake lines eliminate the effect of excessive tension the lines on vehicles with a suspension lift applied
• With the headlight adjustment brackets, you can easily adjust the angle of the lamp leveling sensors

Shocks specs:

• 20 mm diameter polished chrome steel shaft
• Internal IFP piston separates shock oil from the high-pressure nitrogen
• Durable rubber bushes
• Welded pins and eyelets for a strong mounting point
• All 40 mm gas shocks come with a protective rubber boot

Front shocks mounts:

• Top mount: eyelet
• Bottom mount: eyelet

Front shocks dimensions:

• Open: 496 mm
• Closed: 336 mm
• Travel: 160 mm

Rear shocks mounts:

• Top mount: strut
• Bottom mount: eyelet

Rear shocks dimensions:

• Open: 448 mm
• Closed: 303 mm
• Travel: 145 mm

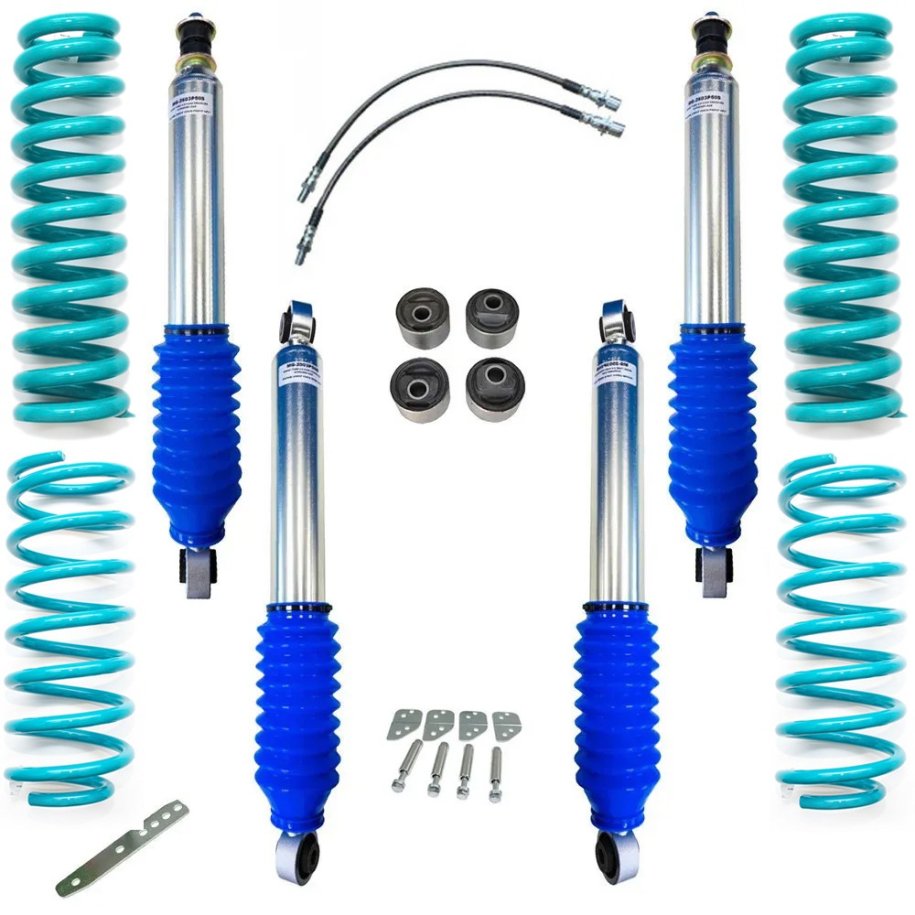

In the box:

• (2) Front shock absorber
• (2) Front spring
• (2) Rear shock absorber
• (2) Rear spring
• (2) Extended braided rear brake line
• Crossmember drop kit
• Headlight adjustment bracket
• (4) Radius OFD polyurethane front control arm bush

Notes:

• If there is rear shaft vibration, we recommend replacing the rear control arm bushings with SE34600 (sold separately)
