CLASSIC PLUS CNPY DC RANGER2011+ 2SW

Classic Plus Canopy

Unrivalled quality, practicality and affordability with extra security at a classic price.

The Classic Plus Canopy range includes a central locking rear door with electronic handle door that incorporates keyless entry and slam-shut operation.

Available as a standard height roof version in smooth, painted exterior finish.

Product Specification

Central locking is operated via the vehicle key FOB, which unlocks and locks the rear door and allows access via the electronically operated exterior handle. Inside the canopy, housed in a new interior door cover is the emergency override handle allowing operation of the door even if the vehicle battery is flat. In the event of an emergency situation such as a flat battery, the rear door can also be overridden from the outside with the supplied separate emergency key.

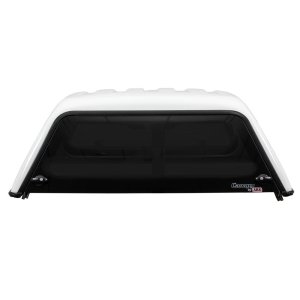

The front canopy window is a lift style to allow maximum rearward vision and easy access to clean the vehicle cabin rear glass.

The rear door is a full 3D curve design, manufactured from grey tinted tempered safety glass to EC43R standards. Each rear door is fitted with a high mount LED stop lamp, a forward facing interior light and specially selected gas assist struts with low opening force suitable for a climate range of -20-¦C to 90-¦C. From a serviceability point of view, the rear door glass can be replaced independently of the door frame which will greatly assist in providing an economical solution for consumers if an accidental breakage occurs.

ARB's unique laser cut steel mount system is bolted directly to the existing vehicle hard points located at the front and rear of the vehicle tub to form a solid foundation for the canopy whilst additional brackets have been added to the rear of the side bedrails to support the rear door frame and door strikers.

ARB canopy shells are made from a special co-extruded ABS plastic for strength and durability. The ABS is inert and with suitable venting is safe for the transportation of animals. Being a recyclable material, we have the opportunity to reduce the amount of landfill at end of product life.

Features

• \t
• Heavy duty 8mm ABS plastic canopy shell suitable for temperatures -20-¦C to 90-¦C\t
• 5mm thick tempered safety glass with dark grey tint (28% visual light transmission) manufactured to international standard ECE43R\t
• Remote keyless entry (rear door only)\t
• ÔÇ?Slam shut' style rear door operation\t
• Single electronically operated door handle\t
• E Mark approved LED high level brake light\t
• Unique canopy mounting system\t
• Keyed alike side windows (where applicable)
