On-board air compressor CKMTA12 12V ARB

• Overload protection in harness: yes
• Overhead protection of compressor engine: yes
• Weight: 8,8 kg
• Power supply: 12 V
• Working range: 9.3 - 10.3 bar
• Maximum current consumption: 56 A
• Power consumption:
  • no load: 28 A
  • under load: 51 A
• Efficiency:
  • no load: 174.3 l / min.
  • under load: (at 200kPa) 131.7 l / min.
• Efficiency duty cycle: 100%

Dimensions:

• (H x L x W): 102 x 190 x 275 [mm]

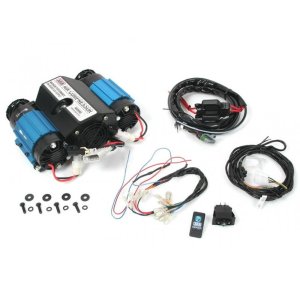

In the box:

• Compressor
• Air filter, mounting bracket
• Pressure switch
• Electrical switch for cabin car and complete electrical harness

Notes:

• Kit with reservoir (ARB171503, sold separately) is necessary to properly control air lockers, remote air adjustable shocks, or other air devices which will be mounted to air compressor
• In case of replacement of old compressor (CKxx series) on CKMTA, old harness will be compatible with new compressor
