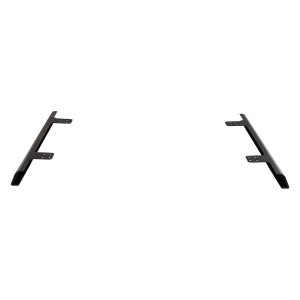

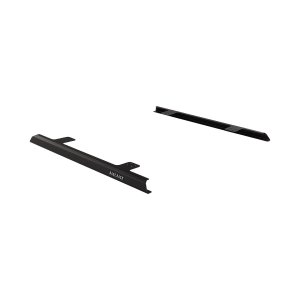

Bagāžas platformas stiprinājumi kravas kastes Sportlid vākam ARB 17900120

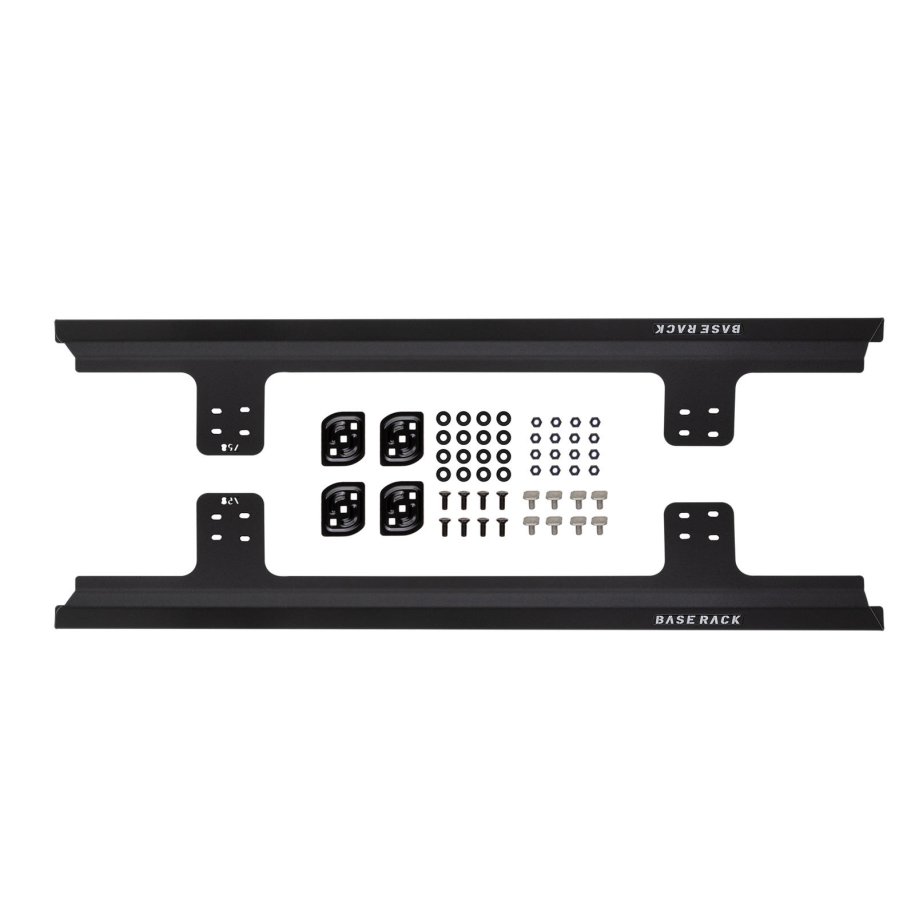

Key considerations for ARB's engineers when developing an ARB Sportlid V specific mount kit were ease offitment / removal, to enable one fit kit to suit all Sportlid V models, to fit in conjunction with optional OESports Bars and to keep the BASE Rack as close as practical to the Sportlid V.Fitment of the BASE Rack system to the ARB Sportlid V is done in a series of steps.1. M8 square head bolts inserted into Sportlid V rail.2. BASE Rack blade brackets are loosely attached to underside of BASE Rack assembly with BASE Rackstud plates, M8 studs, washers and nyloc nuts.3. Width of BASE Rack blade brackets adjusted to suit the applicable Sportlid V. Fitting instructionsprovided include the different widths depending on vehicle application.4. BASE Rack with blade brackets fitted to Sportlid V and fastened to previously installed mountsquare head bolts with M8 washers and nyloc nuts. Net Payload Part NoBASE Rack PNVehicle roof capacity*(kg/lb)BASE Rack & mount kit (kg/lb)BASE Rack net payload(kg/lb)179001201770070 1255 x 1285mm75 / 16520 / 4455 / 121*Maximum roof load capacity. Refer to vehicle owner's manual for model and condition specific roof load capacities  IT IS IMPORTANT TO FOLLOW THE LISTED USAGE INSTRUCTIONS:• Maximum load per BASE Rack beam is 25kg• Load must be evenly distributed and adequately securedAny weight carried on the Sportlid V will adversely affect its handling, particularly in    cornering or in a cross wind, the vehicle should therefore be driven with increased discretion• Regularly check the tightness of the securing fasteners and the security of the load• Attention is directed to statutory requirements regarding maximum permissible  projections from vehicles  Key Features • Vehicle specific Blade bracket mounts for ARB Sportlid V• Roof clearance from bottom of BASE Rack to high point of the Sportlid V is 25mm• Added minimum height to Sportlid V is 60mm• Maximum load per BASE Rack beam is 25kg. Loads must be evenly distributed and adequately secured• Required tools for fitment: 13mm spanner, tape measure, pen/pencil, socket set
