Gaisa kompresora stiprinājums dzinēja telpai TLR Products TLR682104

COMPRESSOR BRACKET, ENGINE BAY

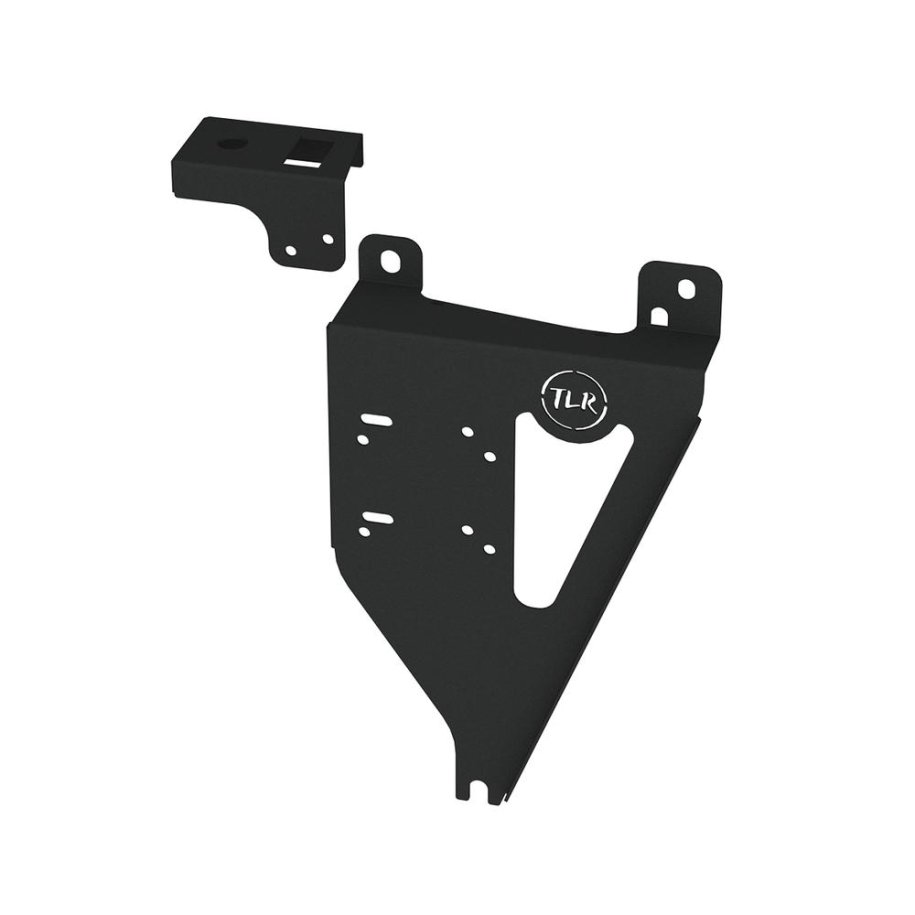

The TLR Products Air Compressor Bracket is designed to provide a clean and effective solution for mounting the ARB Brushless OR Brushed Single Air Compressor. The Bracket set includes a dedicated mounting bracket for the electrical switch and air coupling, ensuring a neat and functional installation.

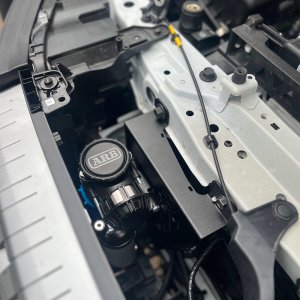

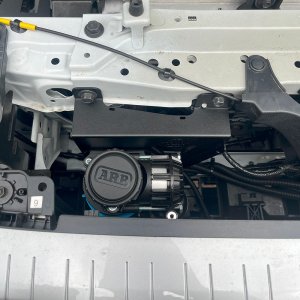

the bracket set is designed to mount at the front of the vehicle in the open space located between the radiator and front grill, we have been careful not to obstruct the airflow to the radiator by locating the compressor off to one side and out of the way as much as possible.

Additional Components Required for installation (All Sold Separately or included in our Complete Kit).

• 1x ARB Single Brushed Air Compressor (CKMA12) or ARB Single Brushless Air Compressor (CKBLA12)
• 1x ARB Pump Up Kit (171302V2)
• 1x ARB Air Coupling (0740111).
• 1x ARB Hose Reinforced JIC-4 0.5 Meter (0740202)
• 1x ARB Adapter Fitting (0740101)
• 1x ARB Dust Cap (0740113)

FEATURES:

• Versatile Mounting Suits both ARB Brushless and Brushed Air Compressor models.
• Space saving design fits in the open space in the front engine bay.
• Laser cut from zinc coated 2 mm steel.
• Powder coated in a black textured finish for rust protection.
• Use of pre-existing holes. No drilling required.
• Electrical Switch and Coupling mount included.
