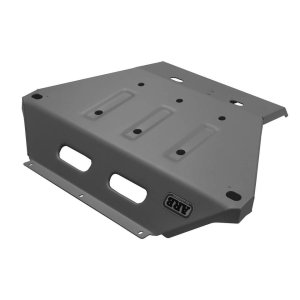

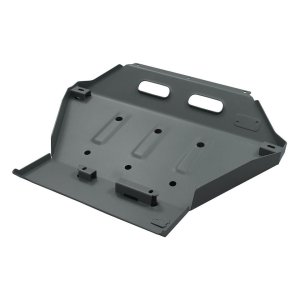

Aizsargpannu komplekts ARB 5440230

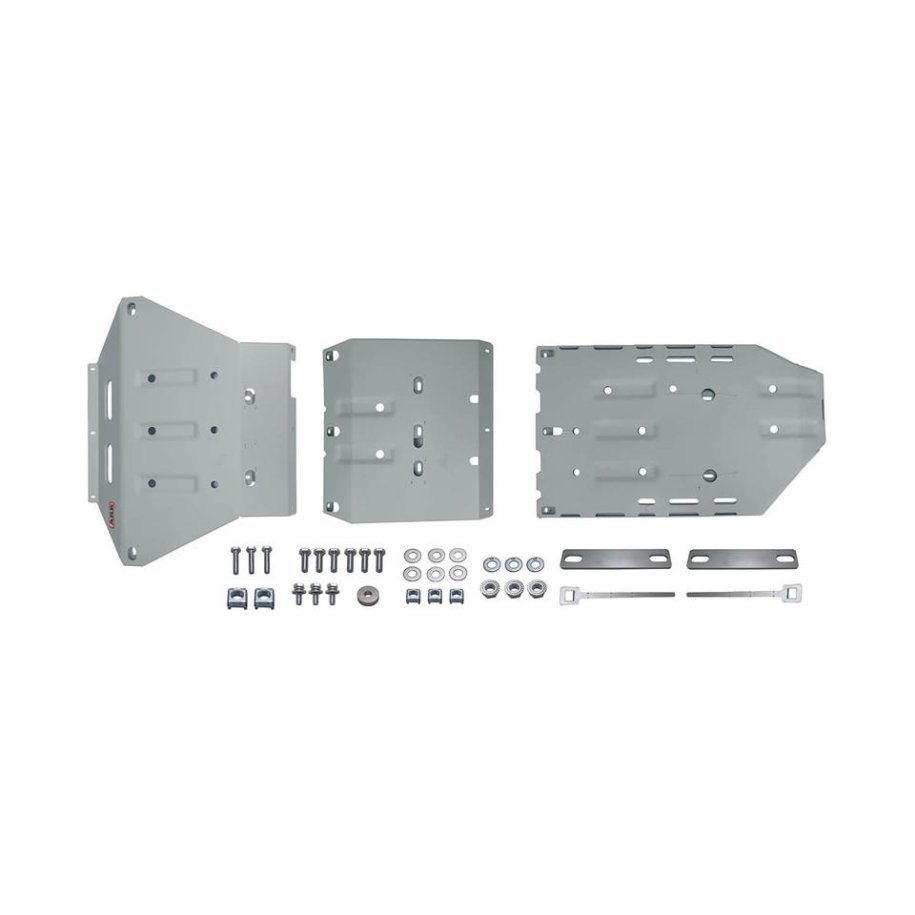

ARB UNDER VEHICLE PROTECTIONDesign and Development:ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. PROTECTION AND STYLING CHARACTERISTICS: 3mm pressed and folded sheet steel adds more strength than a standard folded sheetLaser cut sheet steelUVP panels zinc plated and powder coated in a silver textured finish. All steel components are protected with either powder coat or zinc platingRecessed mounting bolts are protected and easy to remove for vehicle servicingFront panel protects:Stabiliser barEngine componentsFront diff panel protects:Front differential and mountsPower SteeringEngine sumpTransmission panelTransfer case panelsCompatible with ARB Forged Recovery Point PN 2825010 and 2825020Approximate weight of the UVP and fitting kit is 46.6kg. Front panels weighs approximately 7.3kg, front diff panel weighs approximately 11kg, transmission panel weighs approximately 10.6kg and transfer case panel cross weighs approximately 8kgKit includes illustrated fitting instructions NOTE:  While these panels have been engineered for strength and functionality, care and good judgement should be taken when traversing difficult off-road conditions to minimize damage to panels and vehicle.During servicing when panels are removed ensure fasteners are re-fitted to the correct torque values. Inspect panels and mounting points visually on a regular basis. Dirt and foreign matter should be washed out to minimize build up around hot components.
