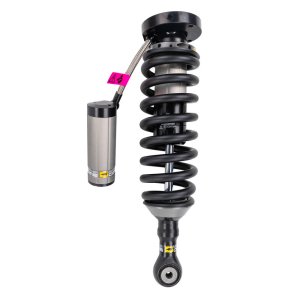

STRUT: TUNDRA 22+ FRONT RH

BP-51 COILOVER SHOCK ABSORBERS

The BP-51 is a user adjustable internal bypass 4WD shock absorber that delivers increased comfort and control; both on and off road.
All BP-51 shock absorbers are designed and manufactured in-house by ARB using state of the art machining and hard anodising equipment.
The body of a BP-51 shock absorber is manufactured using 6061 anodised aluminium to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance.
Extensive dyno, real world and destructive testing has been undertaken during the development process to ensure that reliability, longevity and performance all meet ARB's impeccable standards.

FEATURES

Internal bypass, shim controlled, position sensitive damping

• \t
• Provides comfort at ride height\t
• Damping increases as you get closer to the end zone\t
• Increased control at end zones

Kidney bypass ports\/51mm bore diameter

• \t
• Maximum bore size and Bypass Diameter\t
• Greater oil Volume\t
• More tuneable, ability to generate force

Vehicle specific applications

• \t
• No fitting modifications required\t
• Fit kits included

External compression and rebound adjustment

• \t
• On car adjustable\t
• Independent adjustment of compression and rebound\t
• Ultra wide range to suit varying loads and ride preferences

Body\/Reservoir\/Components 6061 T6 Aluminium

• \t
• Heat dissipation\t
• Corrosion resistance

Type 3 40 Micron hard anodised finish

• \t
• corrosion resistance\t
• Abrasion resistance to stone damage

DASH 6 high temperature Teflon hose with high flow fittings

• \t
• No restriction of oil flow

High pressure Nitrogen reservoir with aluminium, anodised floating piston

• \t
• Increased oil volume\t
• Maximise travel

Adjustable spring preload\/ride height

• \t
• Cater for varying loads

Impact resistant, replaceable shaft guard

• \t
• Protects against stone damage

Quality oversized rubber bushings

• \t
• Durability

Large Teflon lined spherical bearings

• \t
• Durability
